Syringe Vision: Volume Capture at Verification Checkpoints

The volume is measured off the syringe's own printed scale. The reader locates the graduation lattice, whose period is 0.2 mL by construction, and returns (stopper − top tick) ÷ period × 0.2 mL: continuous in the pixels, reported to 0.01 mL. No pixels-per-millilitre constant is carried in from another recording, and nothing in the expression is fitted to an expected answer.

PRINTED-SCALE READ: CERTIFYING VOLUME, 0.01 mL RESOLUTION

Read Resolution

0.01 mL

Off the printed 0.2 mL lattice: not snapped to a mark

Certified Reads In Tolerance

9/9

Against the order's ±10% band

Mean Error vs. Order

0.19 mL

Over 9 certified reads · worst 0.48 mL

Holds Declined, Not Guessed

Consensus not reached: reported not evaluable

EVERY CERTIFYING READ THE SCALE READER HAS PUBLISHED

Case	Checkpoint	Ordered	Certified Read	Error	Tolerance Band	Frames Agreed	Spread	Status
RK Rocuronim Bromid 50 mg	Certifying read · t=73s	5.00 mL	4.52 mL	0.48 mL	4.50-5.50 mL	10 of 11	0.42 mL	In tolerance
RK Rocuronim Bromid 50 mg	Certifying read · t=103s	5.00 mL	4.73 mL	0.27 mL	4.50-5.50 mL	15 of 21	0.41 mL	In tolerance
RK Rocuronim Bromid 50 mg	Certifying read · t=115s	5.00 mL	5.40 mL	0.40 mL	4.50-5.50 mL	6 of 11	0.58 mL	In tolerance
RK2 Rocuronim Bromid 50 mg	Certifying read · t=68s	5.00 mL	4.92 mL	0.08 mL	4.50-5.50 mL	5 of 8	0.49 mL	In tolerance
RK2 Rocuronim Bromid 50 mg	Certifying read · t=106s	5.00 mL	5.02 mL	0.02 mL	4.50-5.50 mL	32 of 34	0.42 mL	In tolerance
RK2 Rocuronim Bromid 50 mg	Certifying read · t=108s	5.00 mL	4.93 mL	0.07 mL	4.50-5.50 mL	19 of 19	0.43 mL	In tolerance
RK2 Rocuronim Bromid 50 mg	Certifying read · t=115s	5.00 mL	4.94 mL	0.06 mL	4.50-5.50 mL	7 of 7	0.56 mL	In tolerance
JD Rocuronium Bromide 140 mg (2 vials)	Syringe 1 · hold 91-92s	6.00 mL	6.07 mL	0.07 mL	5.40-6.60 mL	7 of 11 78 further frame(s) declined	0.49 mL	In tolerance
JD Rocuronium Bromide 140 mg (2 vials)	Syringe 2 · hold 169-175s	8.00 mL	8.22 mL	0.22 mL	7.20-8.80 mL	6 of 15 110 further frame(s) declined	0.59 mL	In tolerance

A single frame is not a measurement. A hold certifies only where several frames of it agree within 0.6 mL of their median, and the published volume is the mean of the frames that agreed: so a stray frame moves nothing. Where the frames do not agree the volume is reported not evaluable rather than guessed: a preparation nobody could measure is a different finding from one measured out of tolerance. Reads are scored against the band the order carries, ±10% of the dose.

FRAME-BY-FRAME: WHAT EACH HOLD ACTUALLY READ

JD · Syringe 1 · hold 91-92s certified 6.07 mL · ordered 6.00 mL

0.00 0.06 0.00 0.08 6.01 6.48 5.99 5.99 5.99 5.99 6.02 78 declined

JD · Syringe 2 · hold 169-175s certified 8.22 mL · ordered 8.00 mL

8.70 8.54 8.12 0.50 0.54 0.52 7.97 7.99 8.84 8.14 8.56 1.53 1.98 0.00 0.14 110 declined

Every value the reader returned during the hold, to 0.01 mL. Green frames agreed with the median and set the certified volume; red frames disagreed and were dropped by the consensus rule, not by hand. The declined count is frames whose scale could not be read at all: the lattice was not periodic enough, or no stopper band stood out on the barrel: which carry no volume and are never interpolated over.

EARLIER WHOLE-MARK READ: CANDID FOOTAGE BASELINE, CENTER CAMERA

Kept for comparison. These are the reads from before the printed-scale reader: a model named the graduation the stopper sat on, so every answer landed on a printed mark and ±1 mL was the only tolerance that could honestly be drawn round it. The footage is candid: the technician never deliberately showed the syringe to the camera.

Checkpoints Verified

4/4

Best read within ±1 mL of compounding math

Mean Absolute Error

1.41 mL

Vs. calculated ground truth (36 readings)

Within ±1 mL of Ground Truth

53%

Of readings with a volume estimate

Detection Rate

100%

Volume reported / 36 candid frames (no presentation protocol)

THE 4 VERIFICATION CHECKPOINTS

Checkpoint	Window	Expected (Compounding Math)	Best Camera Read	Read Precision (±σ)	Reads / Frames	Status
Diluent-filled syringe	190-197s	5.0 mL	5.00 mL	± 0.00 mL 3 reads · 5.0-5.0 mL	9 / 9	Verified
Diluent-emptied syringe	203-210s	2.0 mL	2.00 mL	± 0.94 mL 3 reads · 0.0-2.0 mL	9 / 9	Verified
Drug-filled syringe	419-431s	5.0 mL	5.00 mL	± 0.82 mL 3 reads · 4.0-6.0 mL	9 / 9	Verified
Drug-emptied syringe	432-450s	0.0 mL	0.00 mL	± 0.00 mL 3 reads · 0.0-0.0 mL	9 / 9	Verified

Candid footage: the technician never deliberately showed the syringe to the camera, yet 4 of 4 checkpoints were verified within ±1 mL. Each frame's volume is the median of 3 independent Gemini reads. Read Precision (±σ) is the spread of those independent reads at the verification frame: an honest measurement uncertainty. It is tight where the syringe is held clean and vertical (e.g. the diluent-filled read) and wider where it is tilted or finger-occluded during handling. The sub-millilitre (x.xx) resolution this section anticipated is what the printed-scale reader above now delivers: it measures against the barrel's own lattice instead of naming a mark, reports to 0.01 mL, and certifies on frame-to-frame consensus during the present-to-camera hold rather than on any single frame.

CENTER CAMERA: RESULTS BY CHECKPOINT

Event	Ground Truth	Mean Predicted	Mean Abs. Error	Detection Rate	Samples
Diluent-filled syringe	5.0 mL	4.03 mL	0.97 mL	100%	9
Diluent-emptied syringe	2.0 mL	0.89 mL	1.11 mL	100%	9
Drug-filled syringe	5.0 mL	3.17 mL	1.83 mL	100%	9
Drug-emptied syringe	0.0 mL	1.71 mL	1.71 mL	100%	9

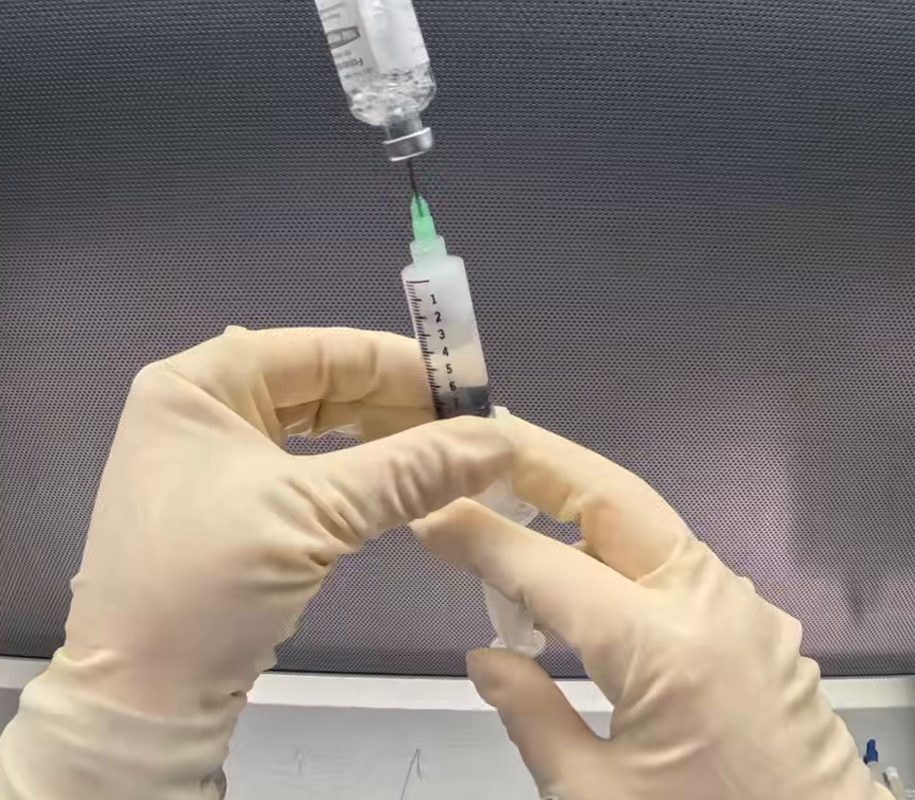

SAMPLE EVIDENCE CROPS: SUCCESSFUL READS

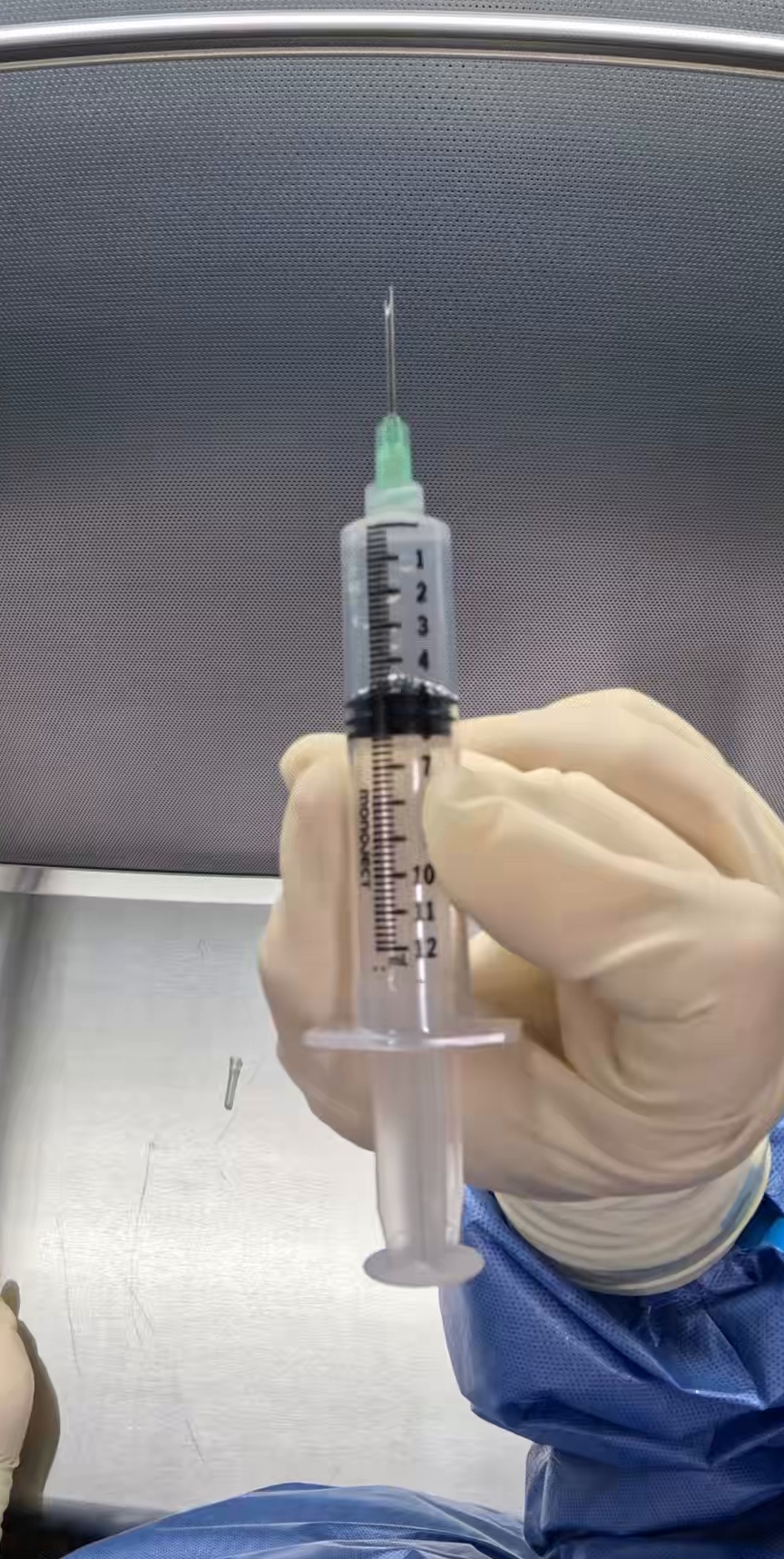

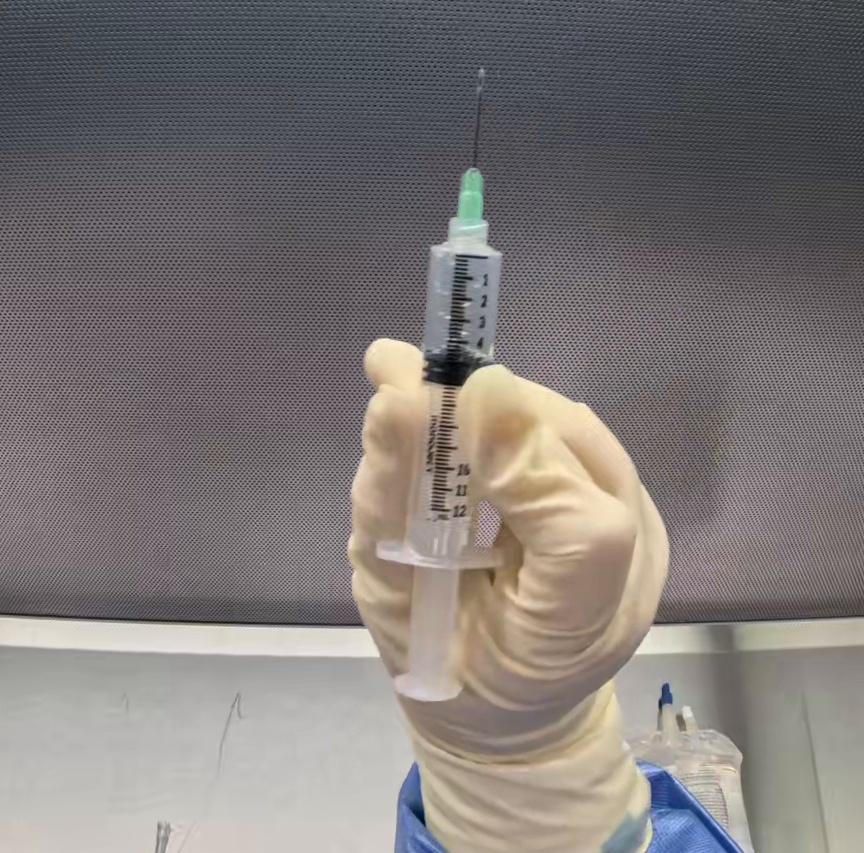

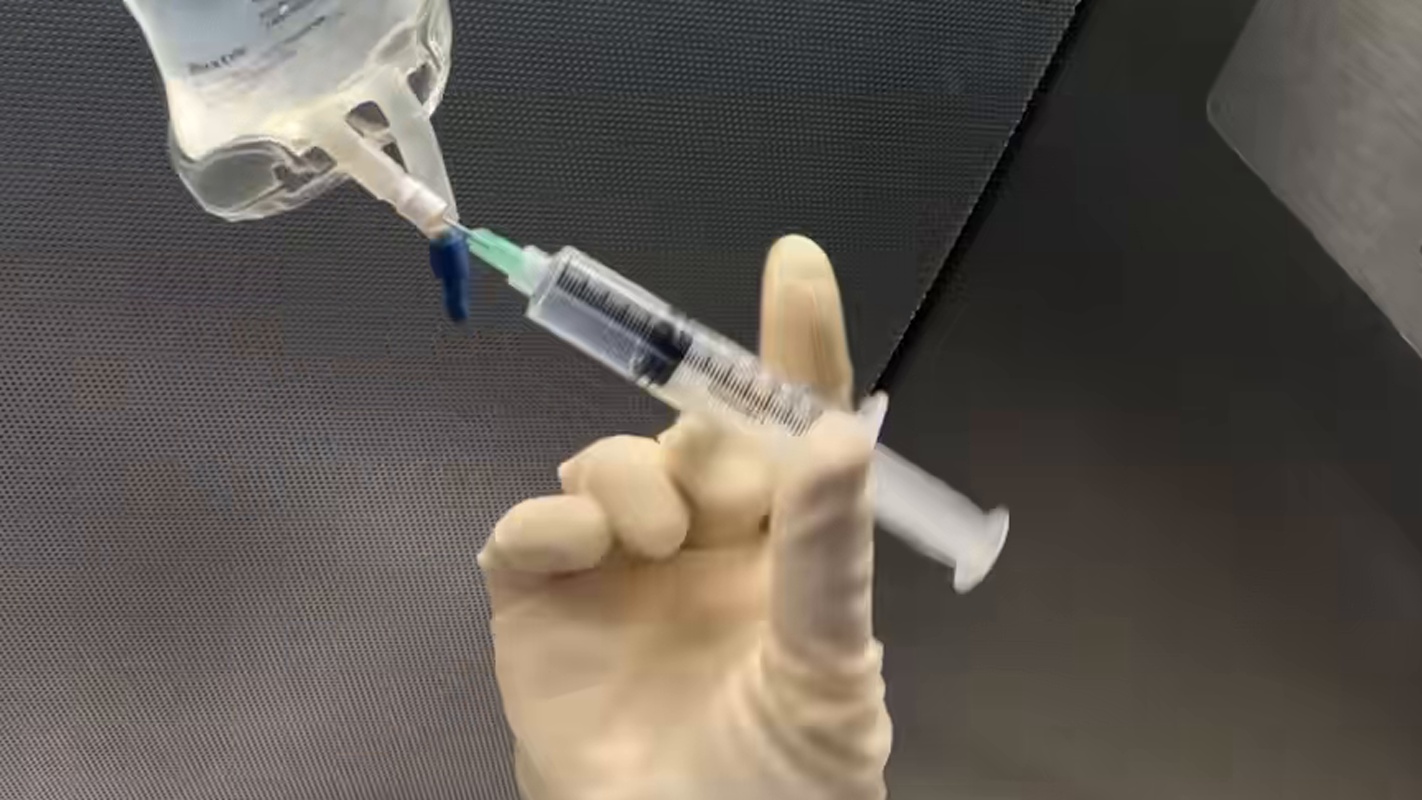

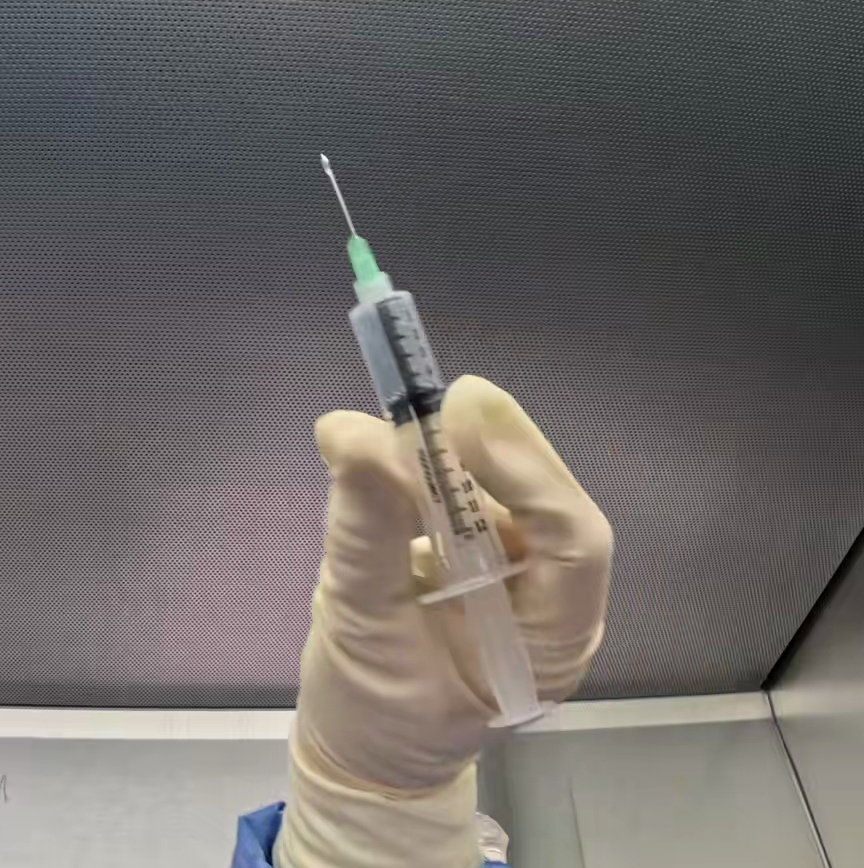

CENTER · t=190.0s

Diluent-filled syringe

Pred: 4.00 mL | GT: 5.0 mL

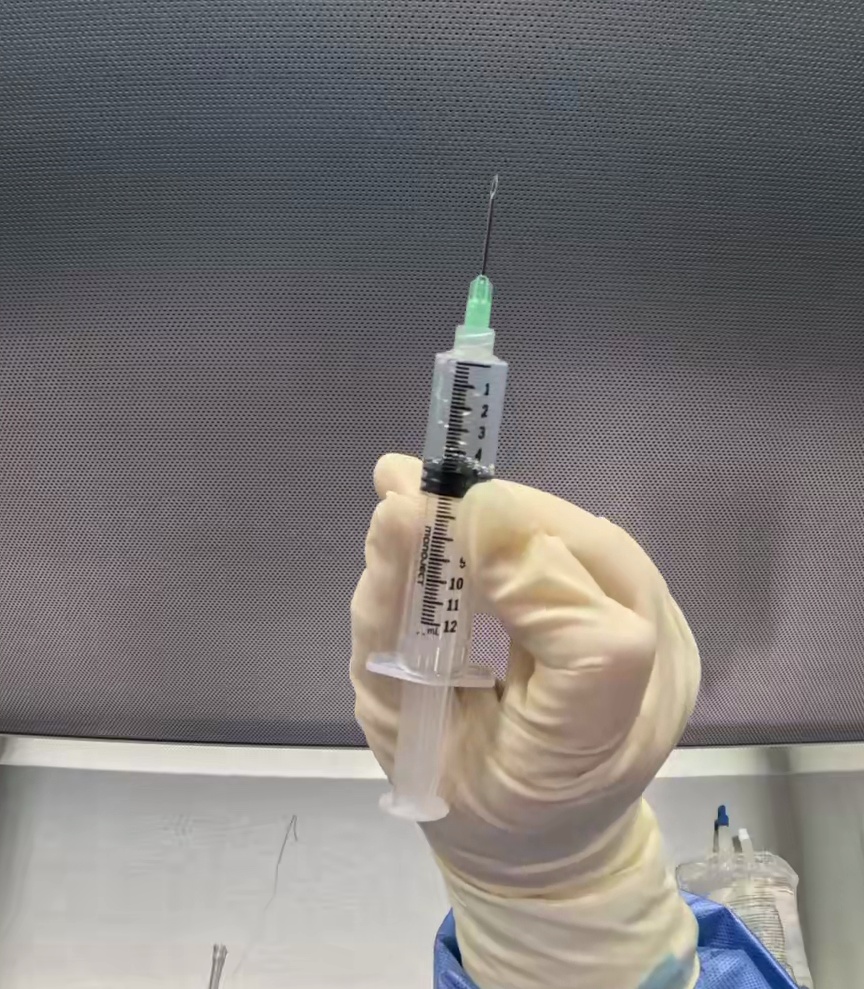

CENTER · t=190.88s

Diluent-filled syringe

Pred: 3.50 mL | GT: 5.0 mL

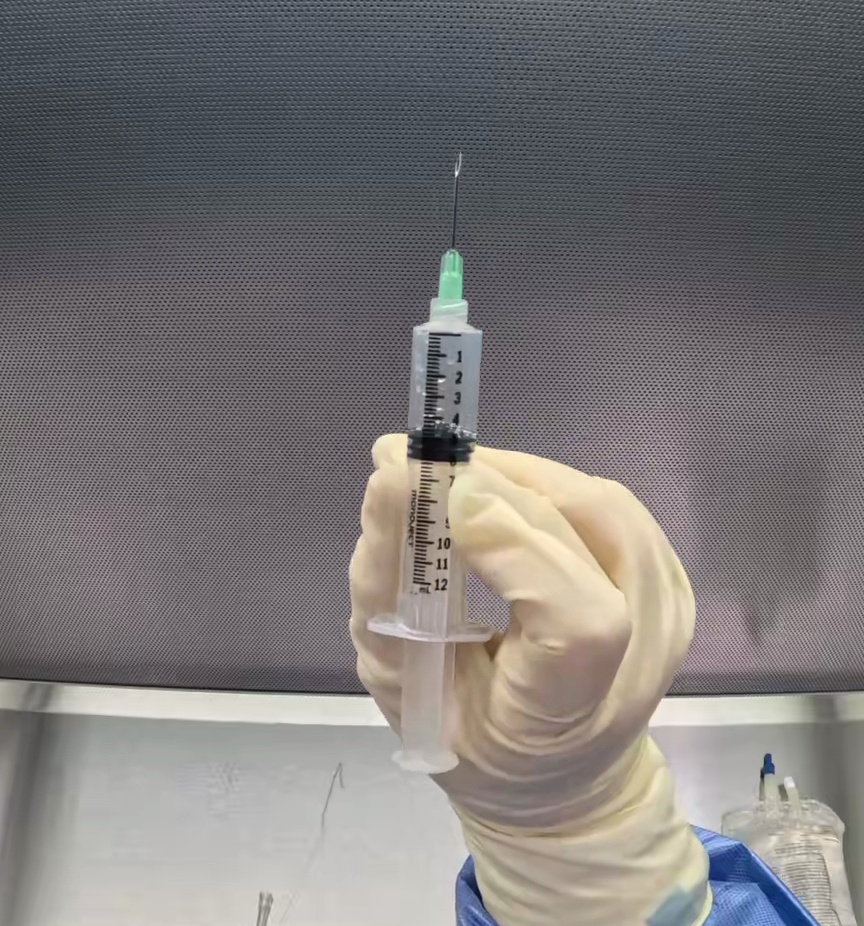

CENTER · t=191.75s

Diluent-filled syringe

Pred: 4.00 mL | GT: 5.0 mL

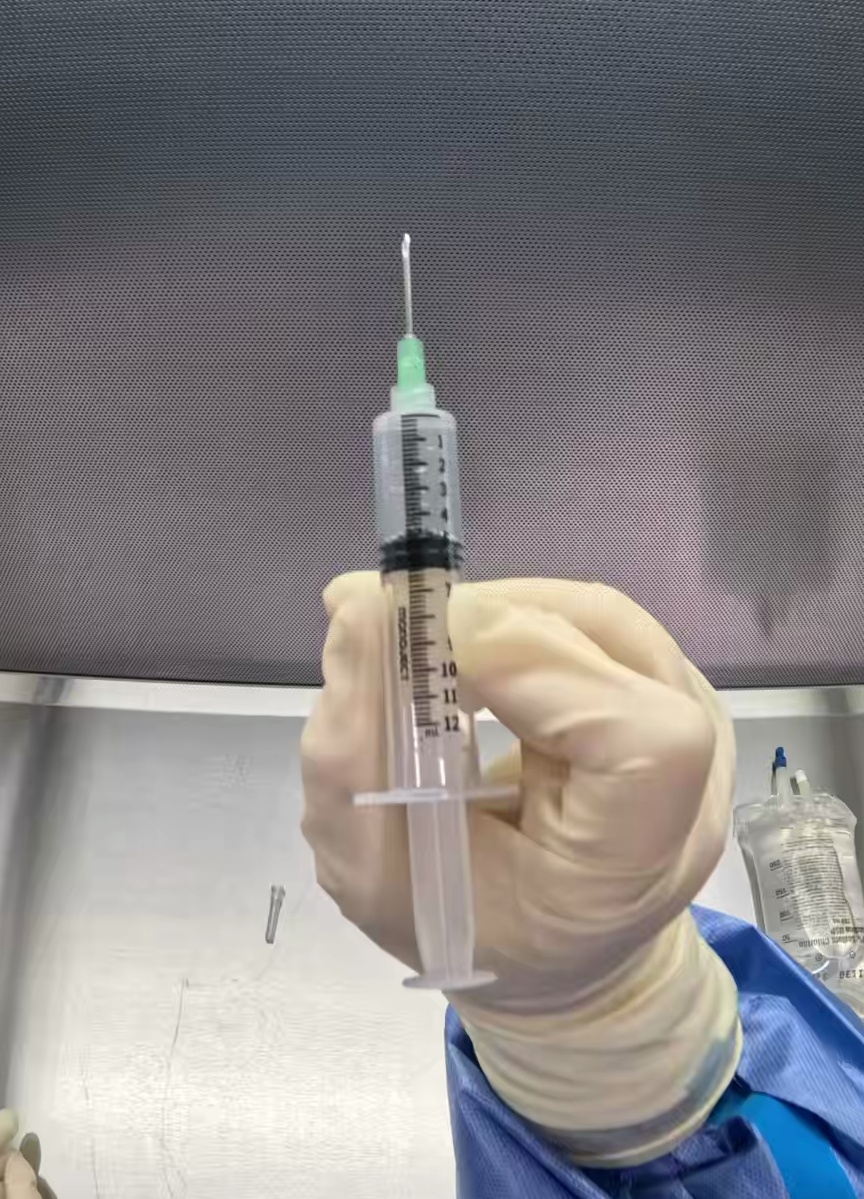

CENTER · t=192.62s

Diluent-filled syringe

Pred: 5.00 mL | GT: 5.0 mL

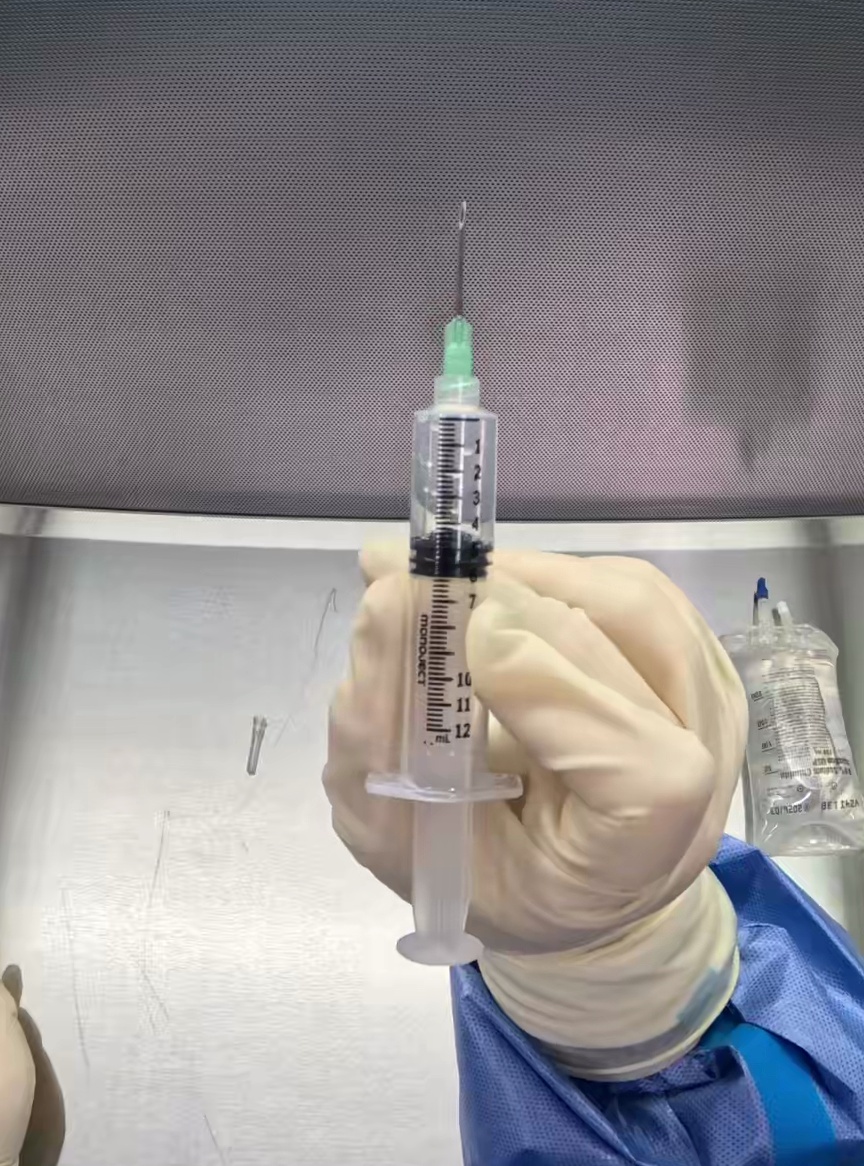

CENTER · t=193.5s

Diluent-filled syringe

Pred: 5.00 mL | GT: 5.0 mL

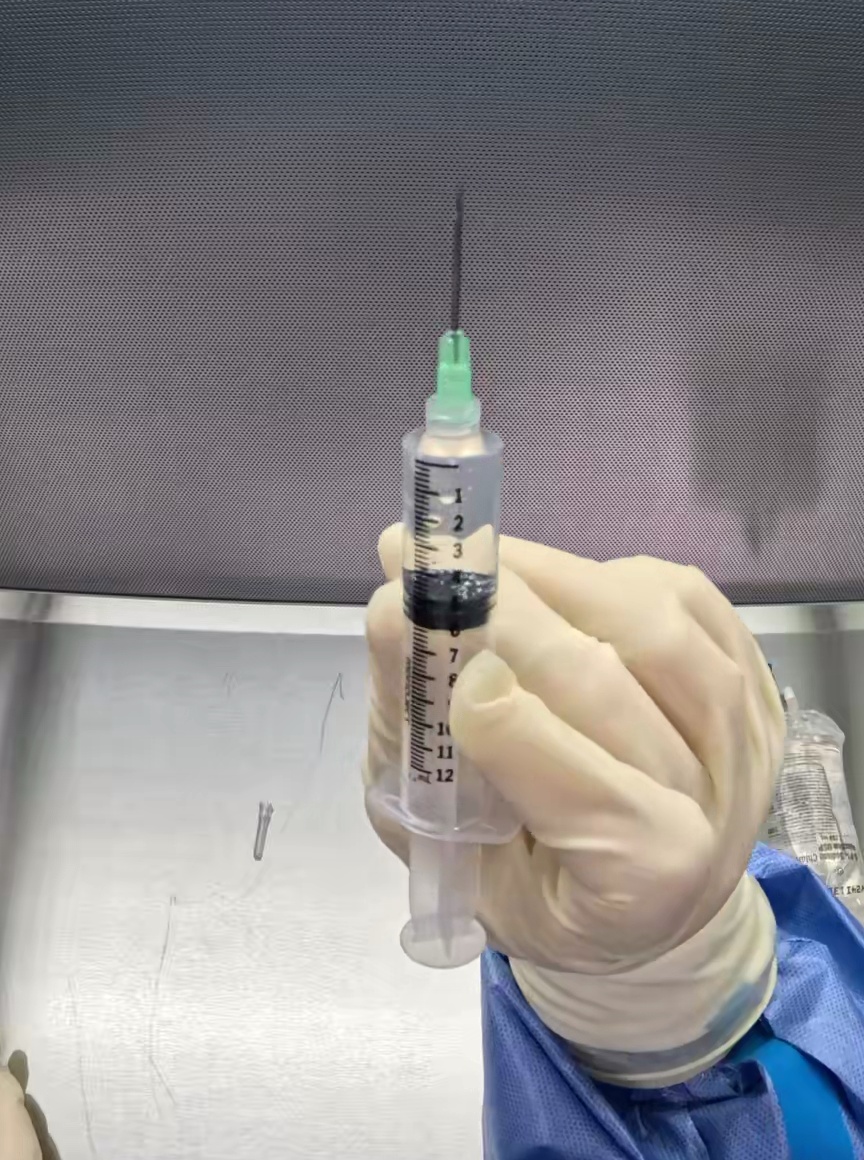

CENTER · t=194.38s

Diluent-filled syringe

Pred: 4.00 mL | GT: 5.0 mL

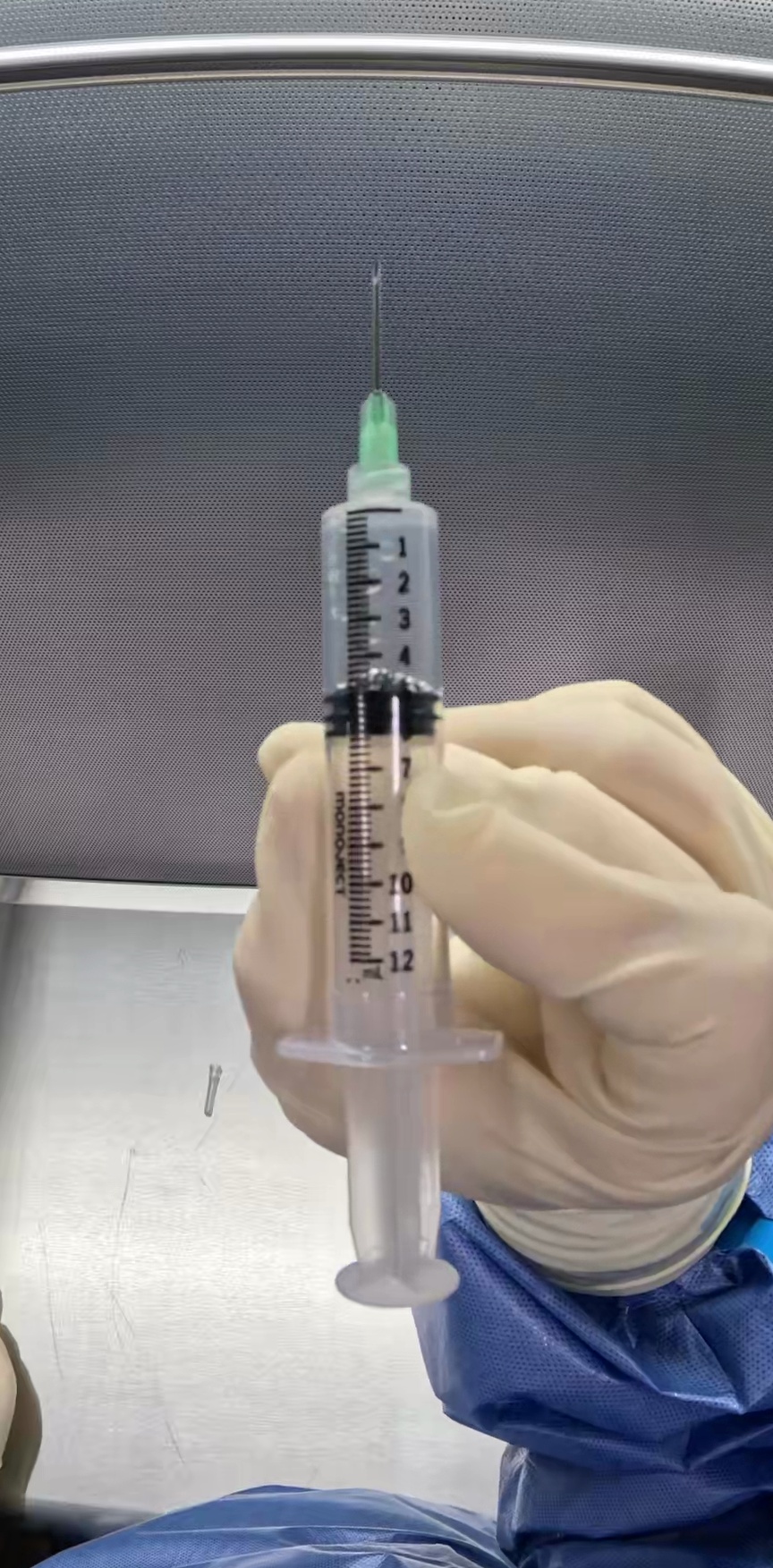

CENTER · t=195.25s

Diluent-filled syringe

Pred: 4.80 mL | GT: 5.0 mL

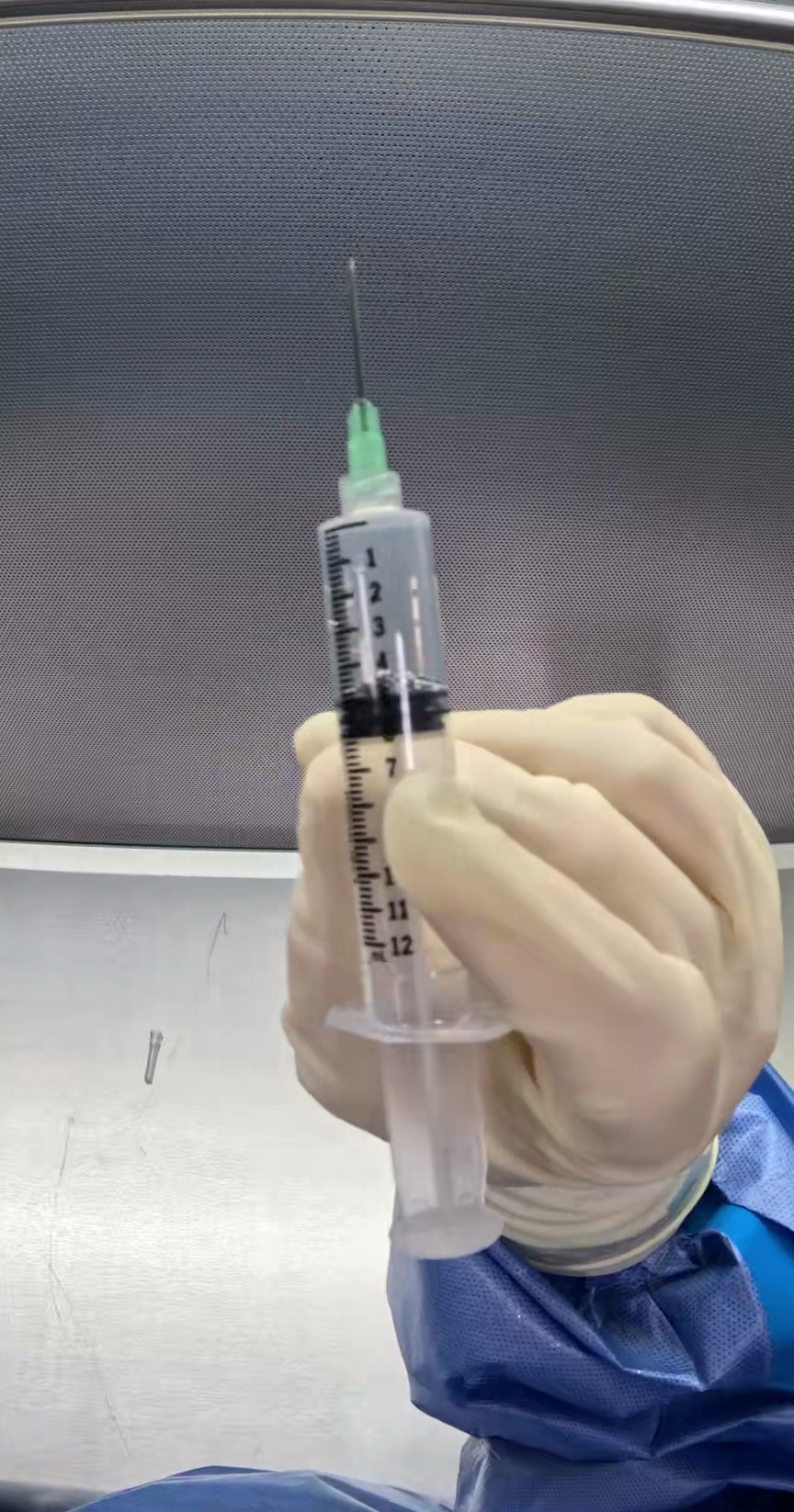

CENTER · t=196.12s

Diluent-filled syringe

Pred: 4.00 mL | GT: 5.0 mL

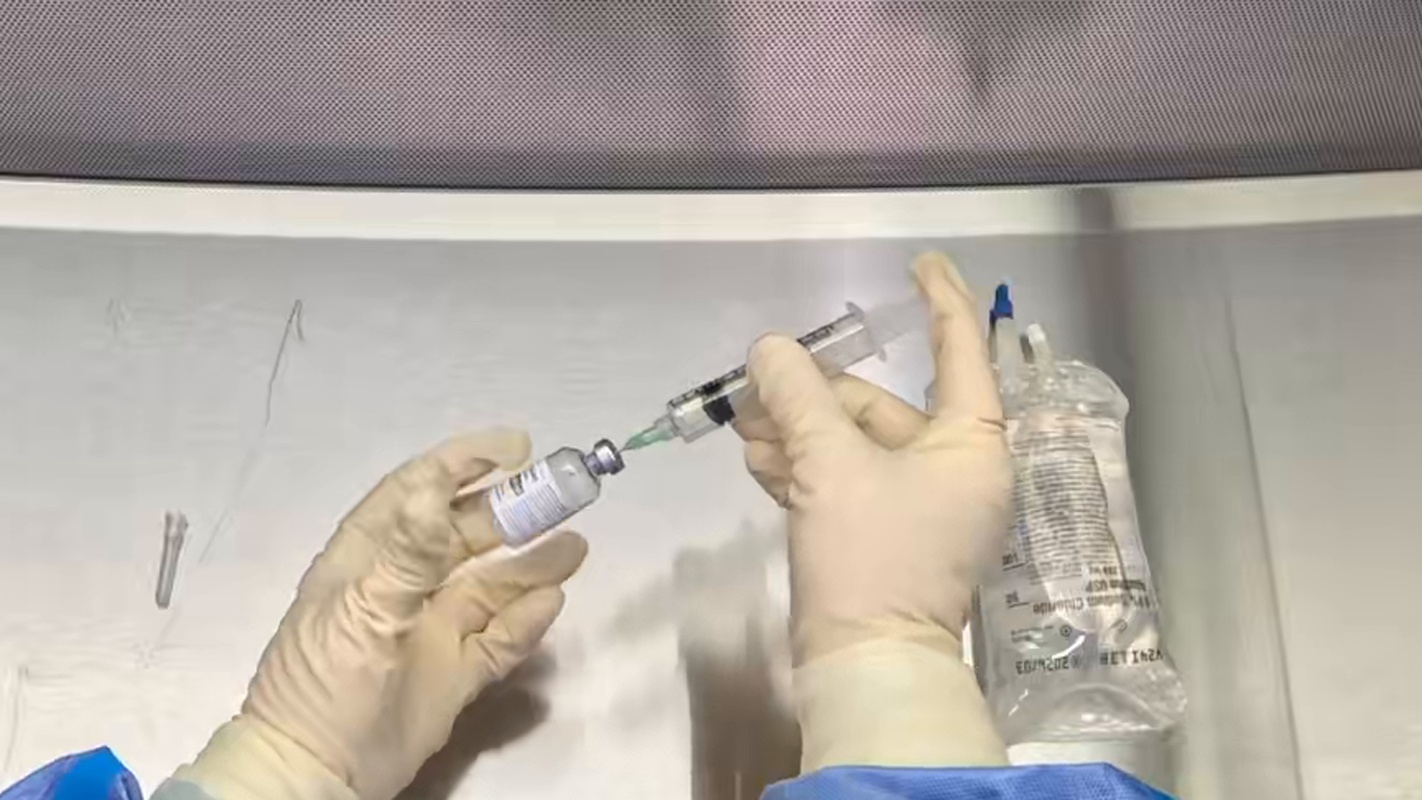

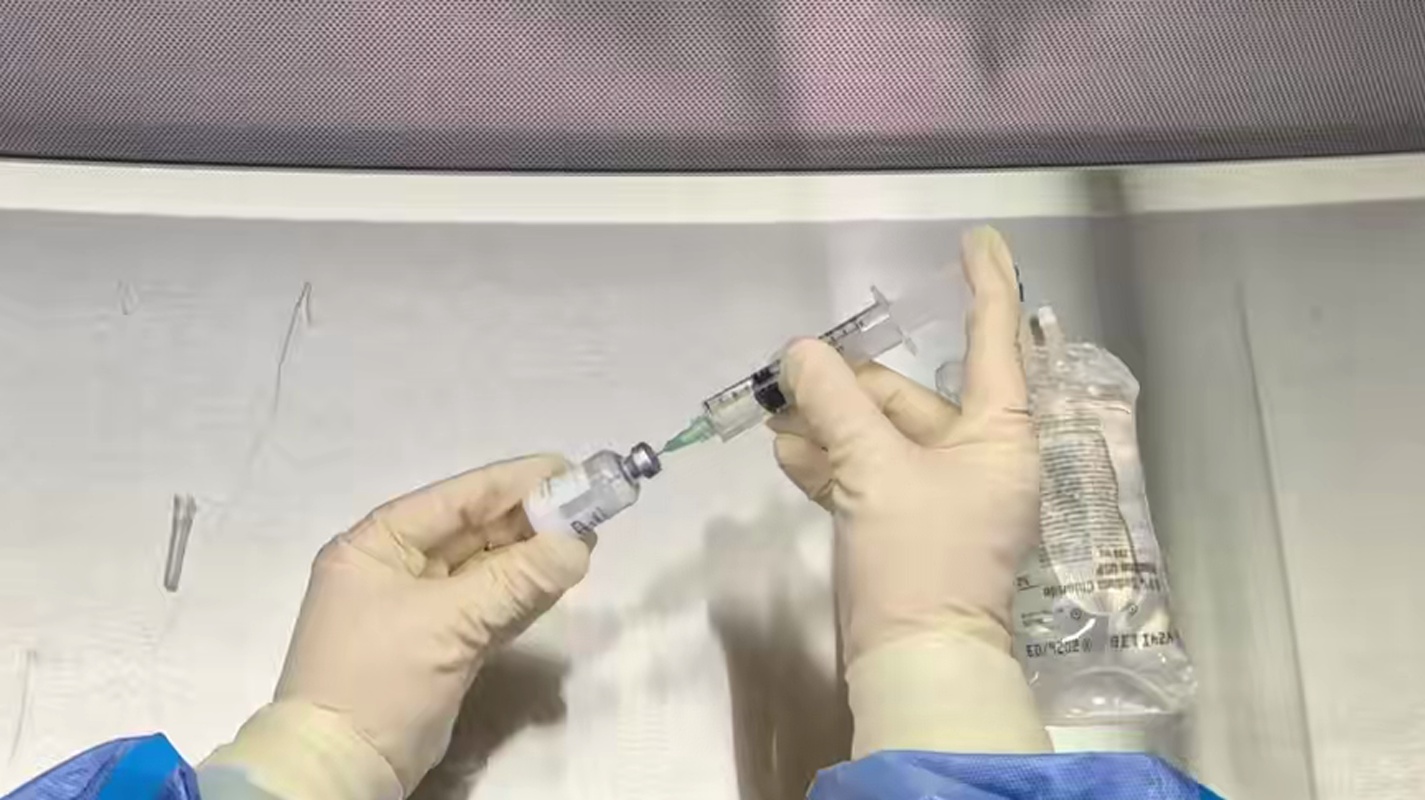

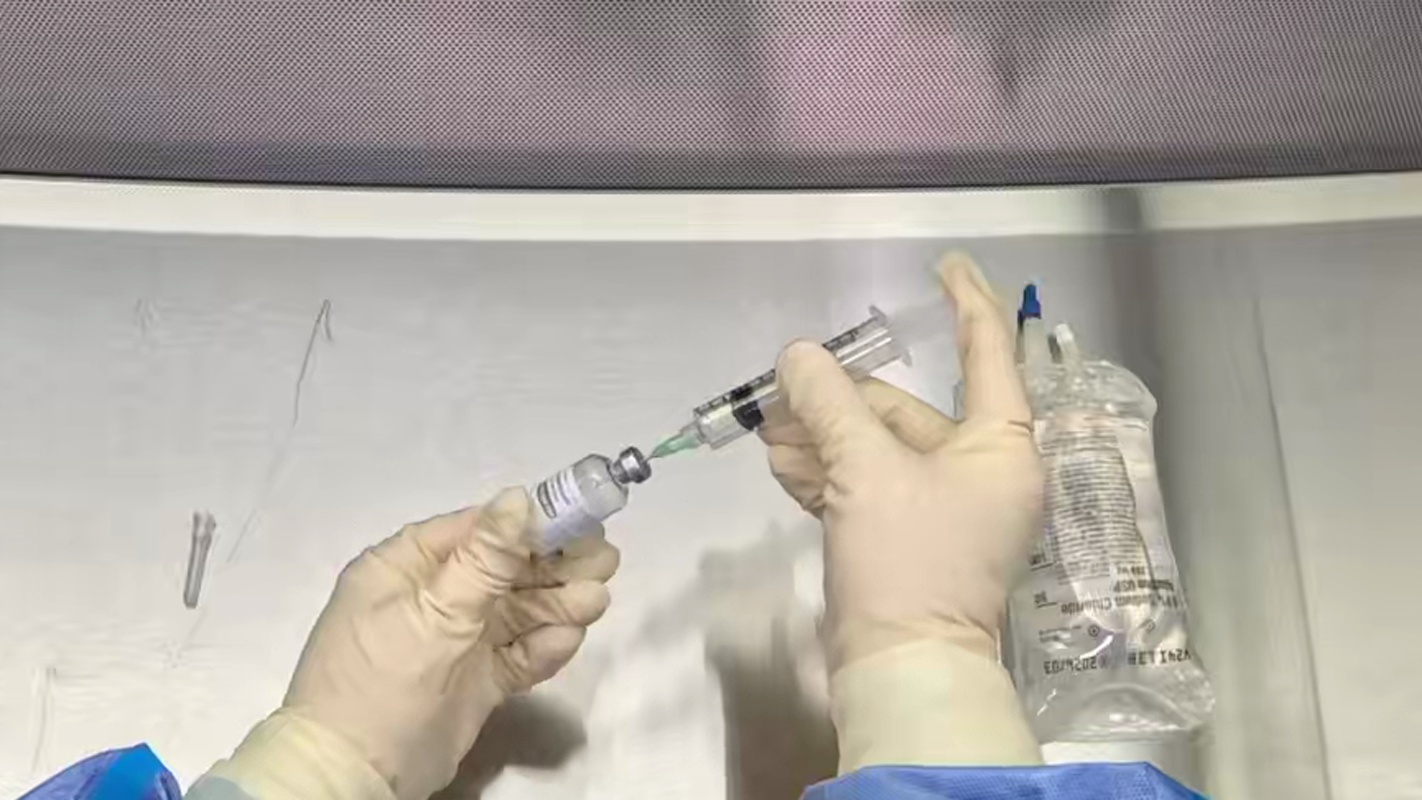

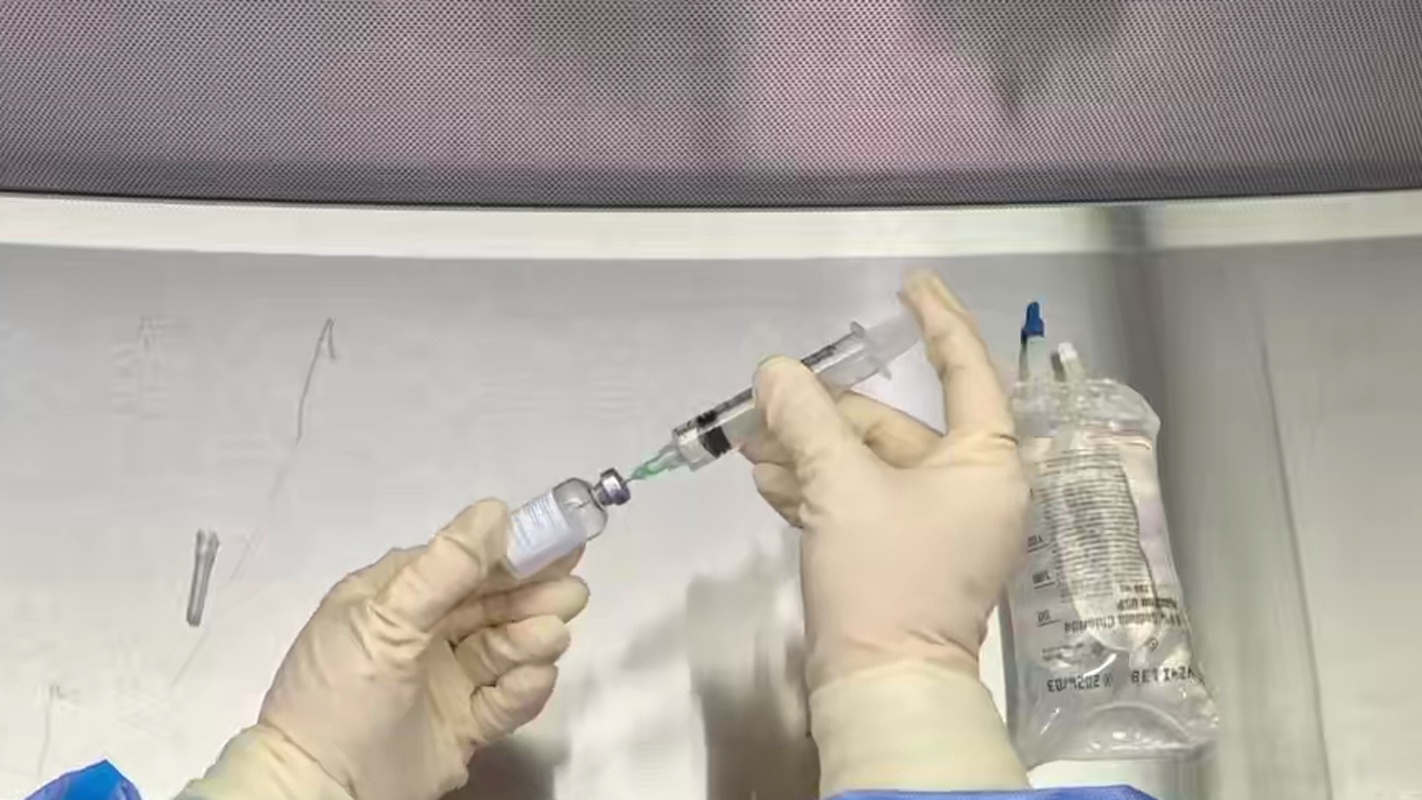

CENTER · t=203.88s

Diluent-emptied syringe

Pred: 2.00 mL | GT: 2.0 mL

CENTER · t=204.75s

Diluent-emptied syringe

Pred: 2.00 mL | GT: 2.0 mL

CENTER · t=205.62s

Diluent-emptied syringe

Pred: 2.00 mL | GT: 2.0 mL

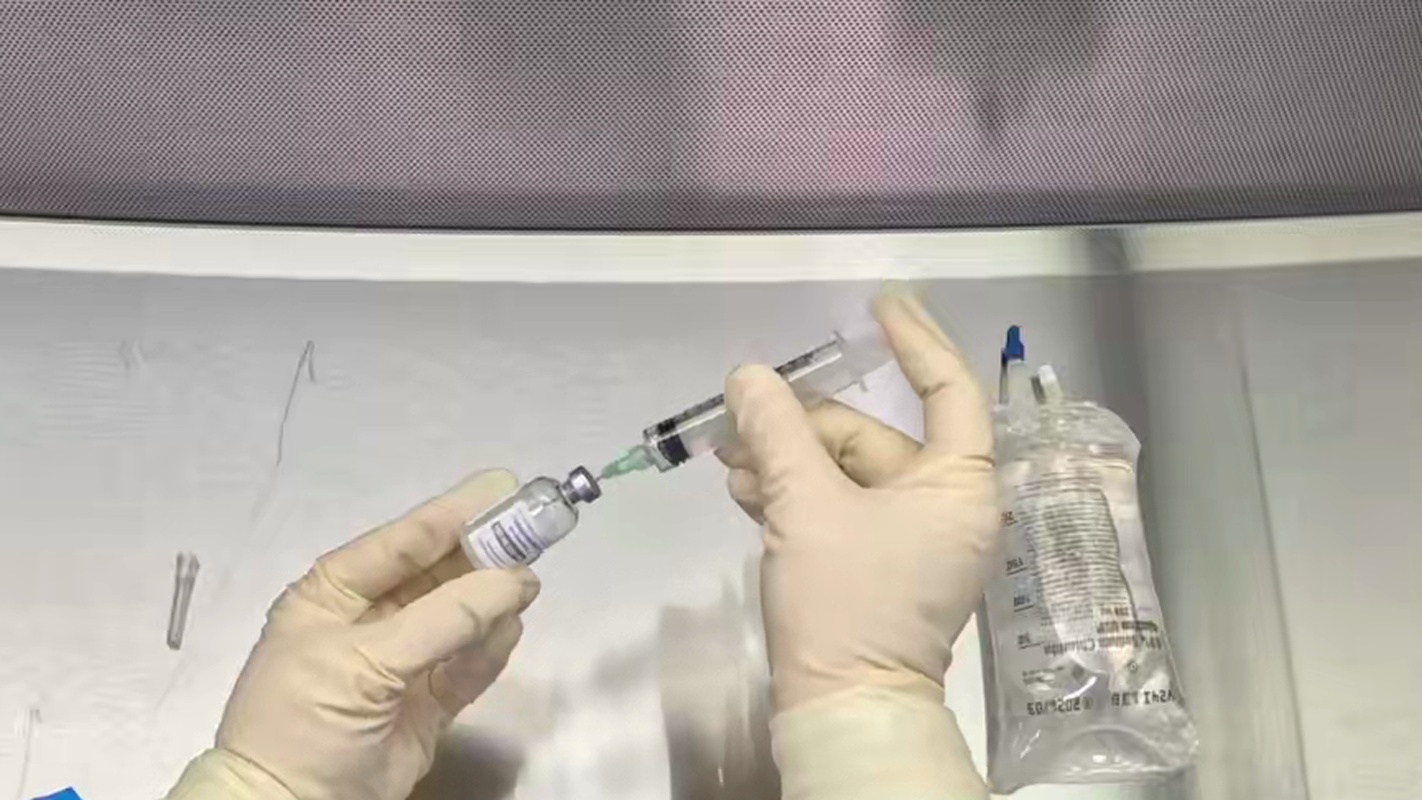

CENTER · t=206.5s

Diluent-emptied syringe

Pred: 0.00 mL | GT: 2.0 mL

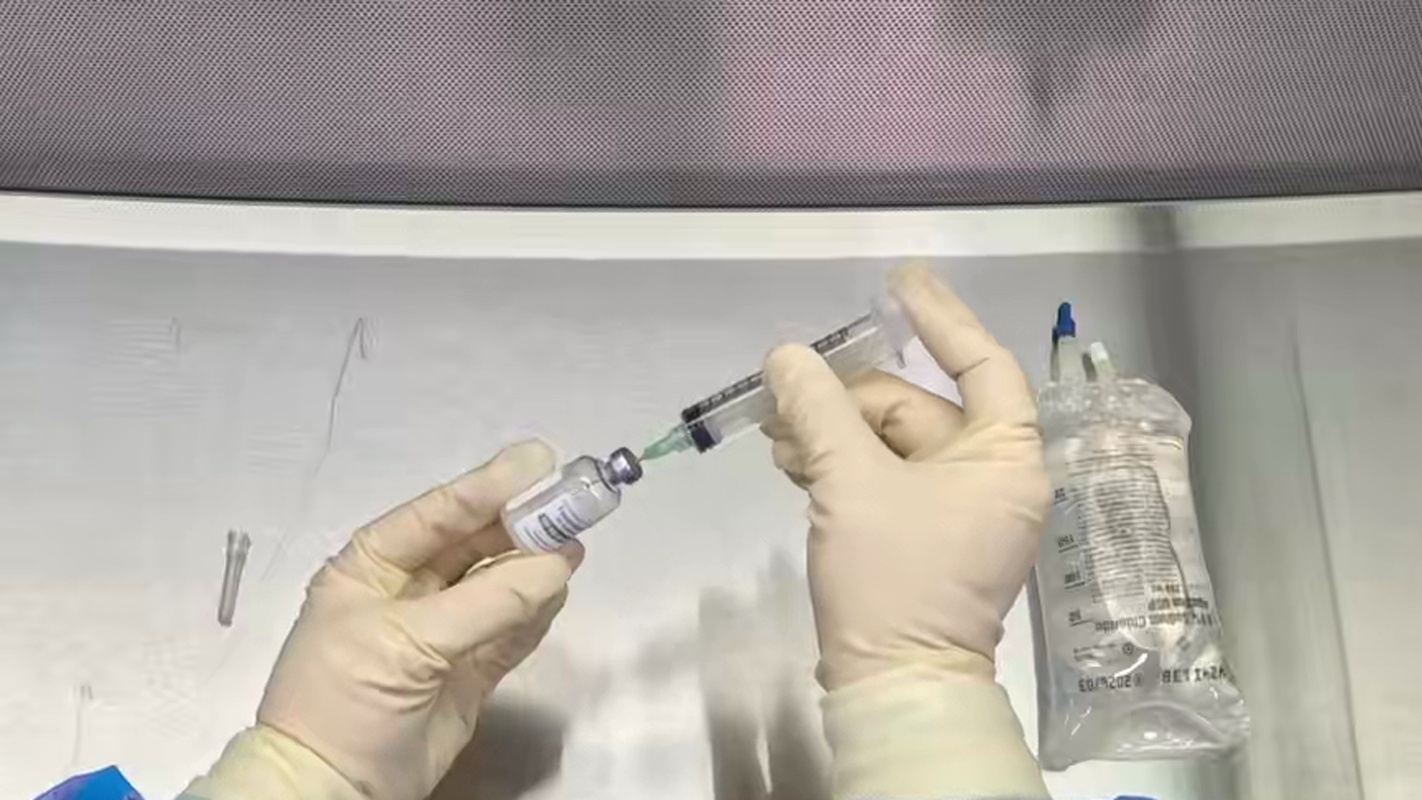

CENTER · t=207.38s

Diluent-emptied syringe

Pred: 0.00 mL | GT: 2.0 mL

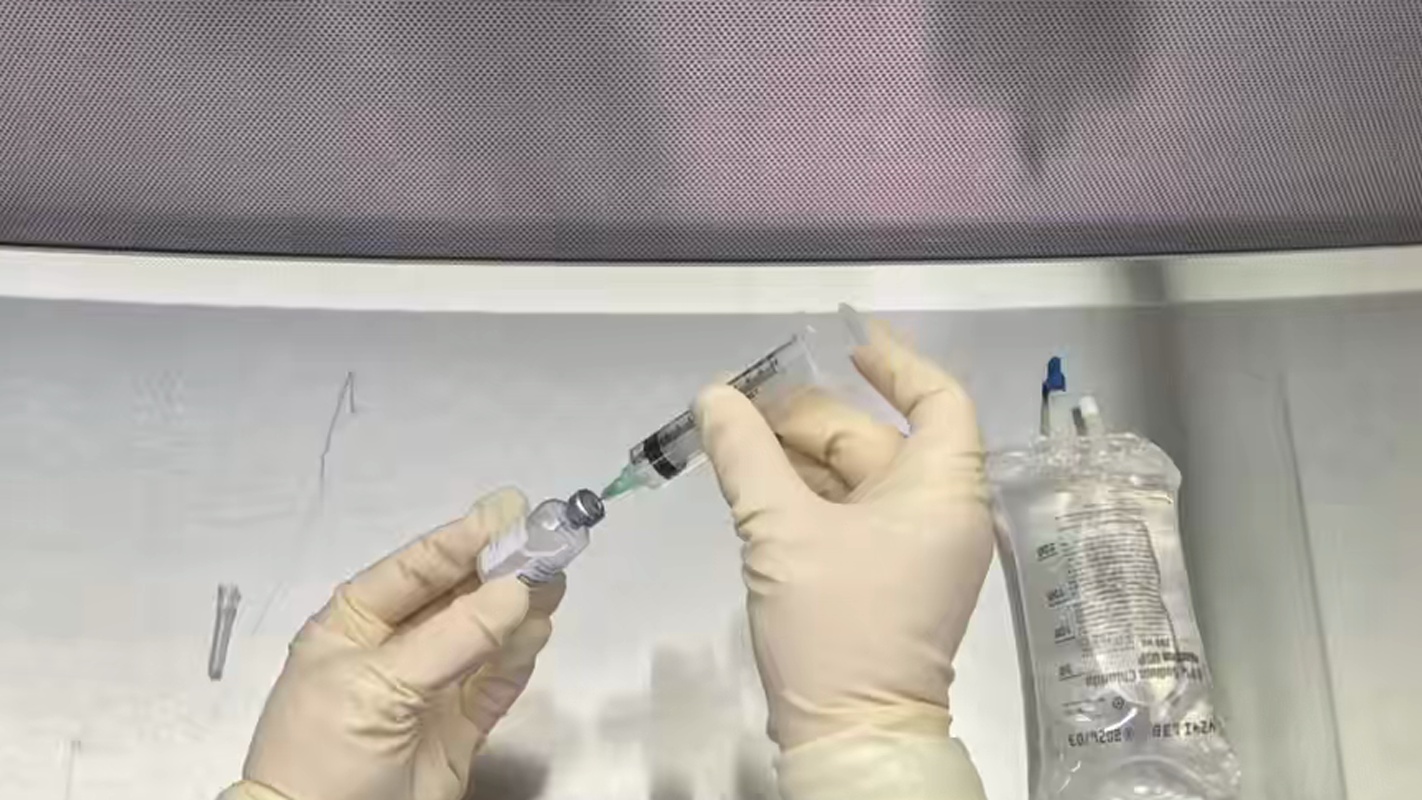

CENTER · t=208.25s

Diluent-emptied syringe

Pred: 0.00 mL | GT: 2.0 mL

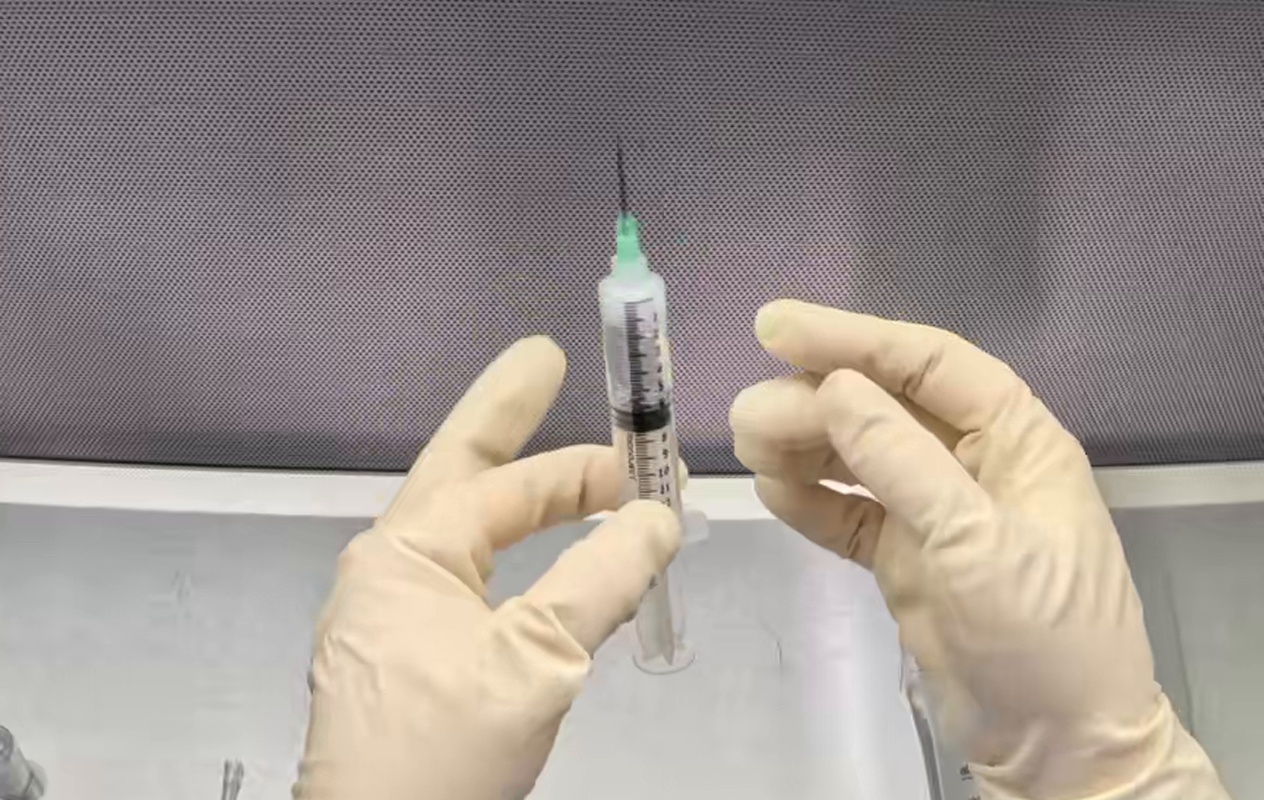

CENTER · t=419.0s

Drug-filled syringe

Pred: 1.50 mL | GT: 5.0 mL

CENTER · t=420.5s

Drug-filled syringe

Pred: 2.00 mL | GT: 5.0 mL

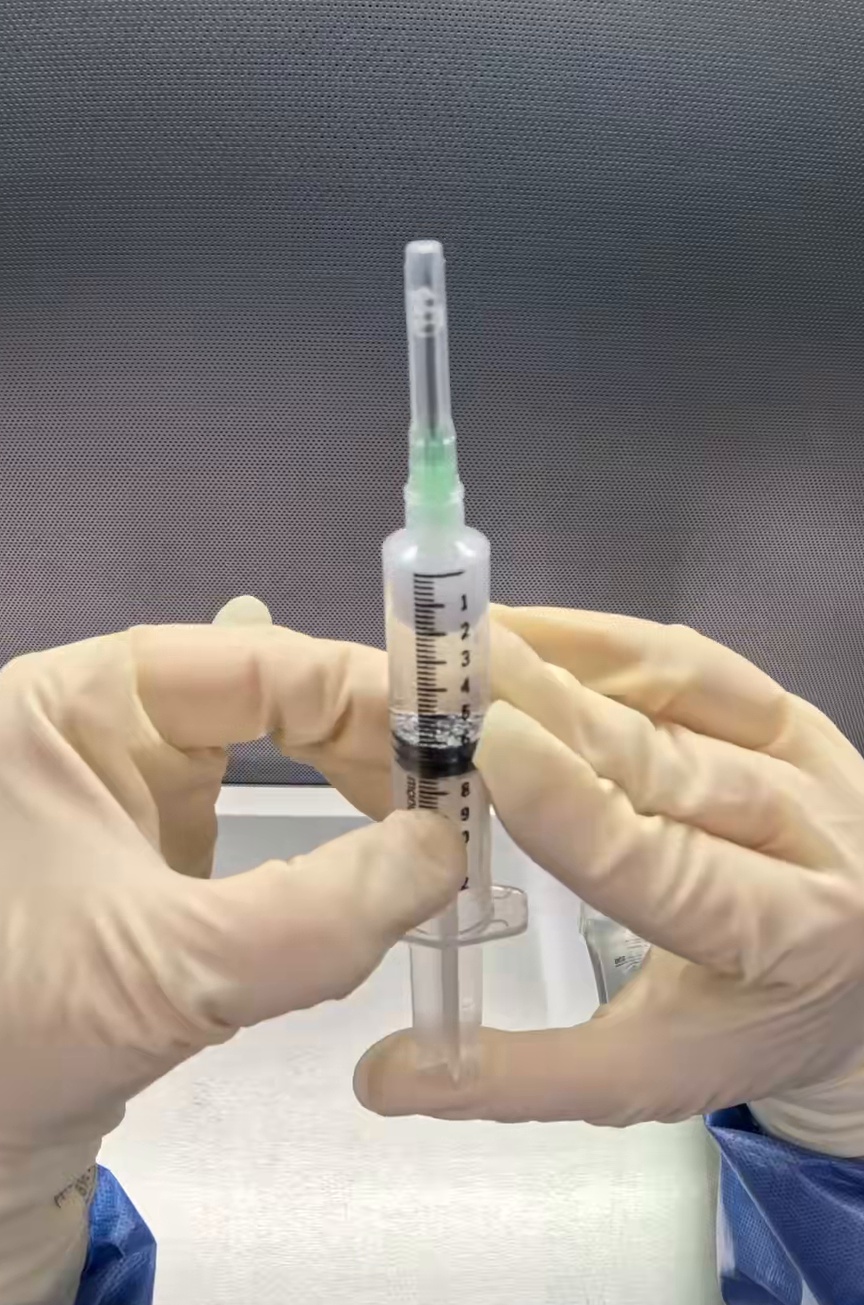

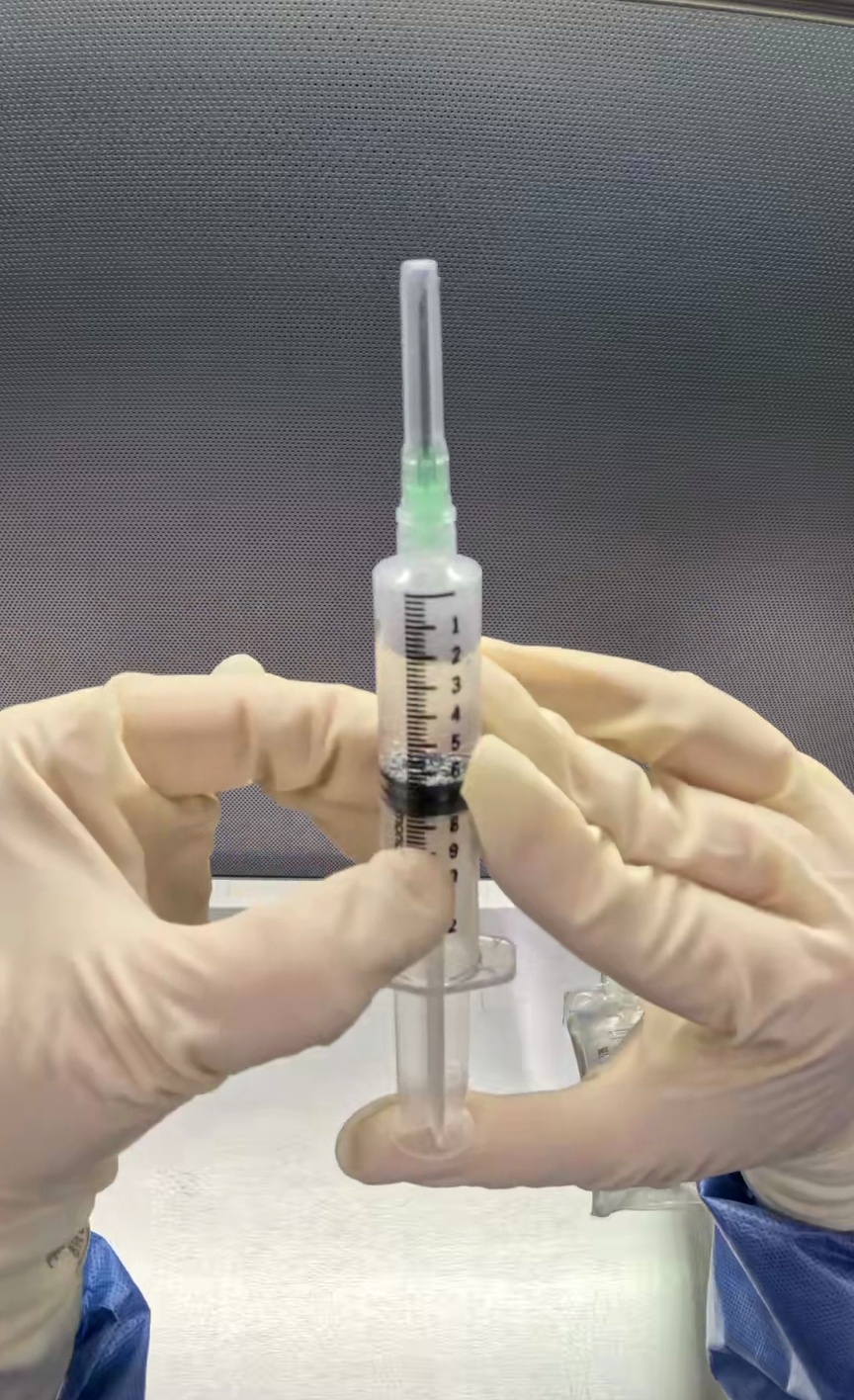

CENTER · t=422.0s

Drug-filled syringe

Pred: 5.00 mL | GT: 5.0 mL

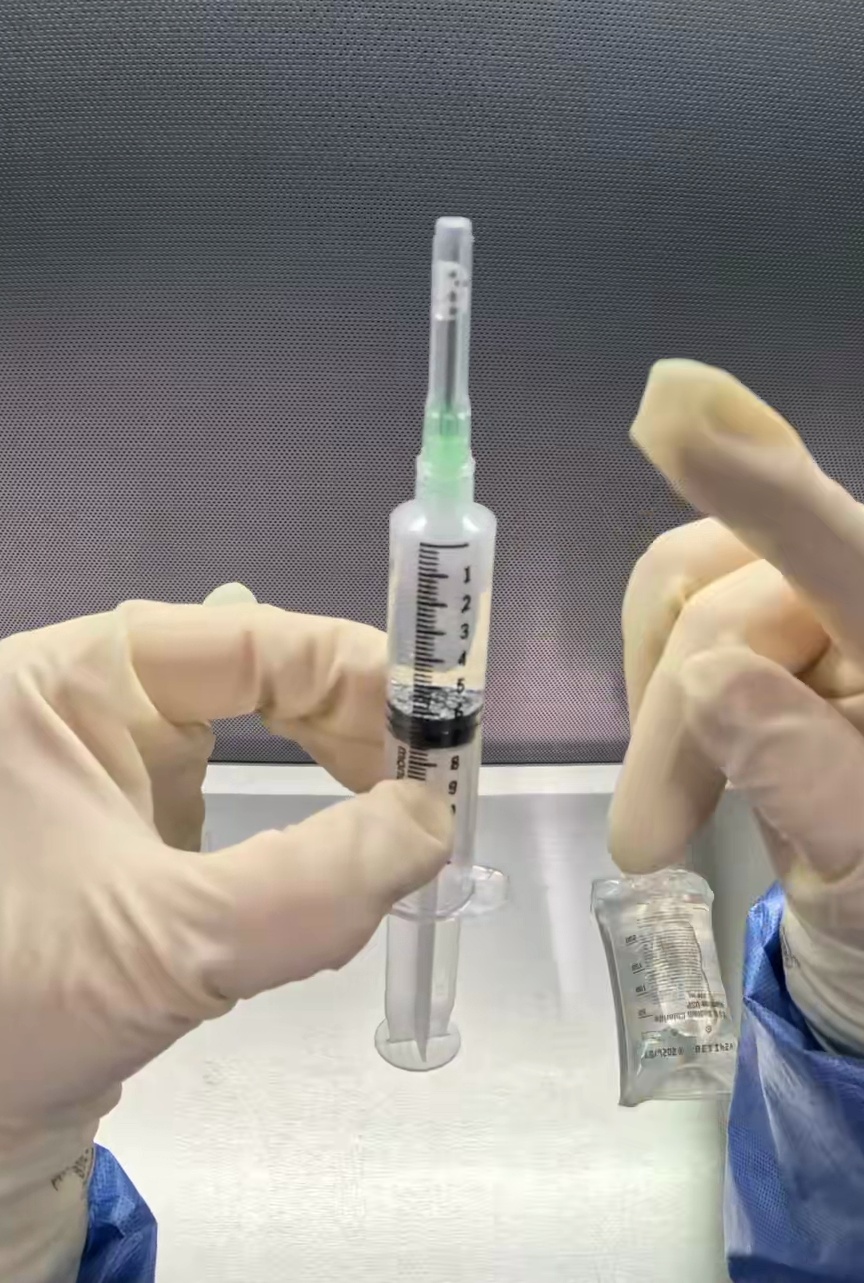

CENTER · t=423.5s

Drug-filled syringe

Pred: 5.00 mL | GT: 5.0 mL

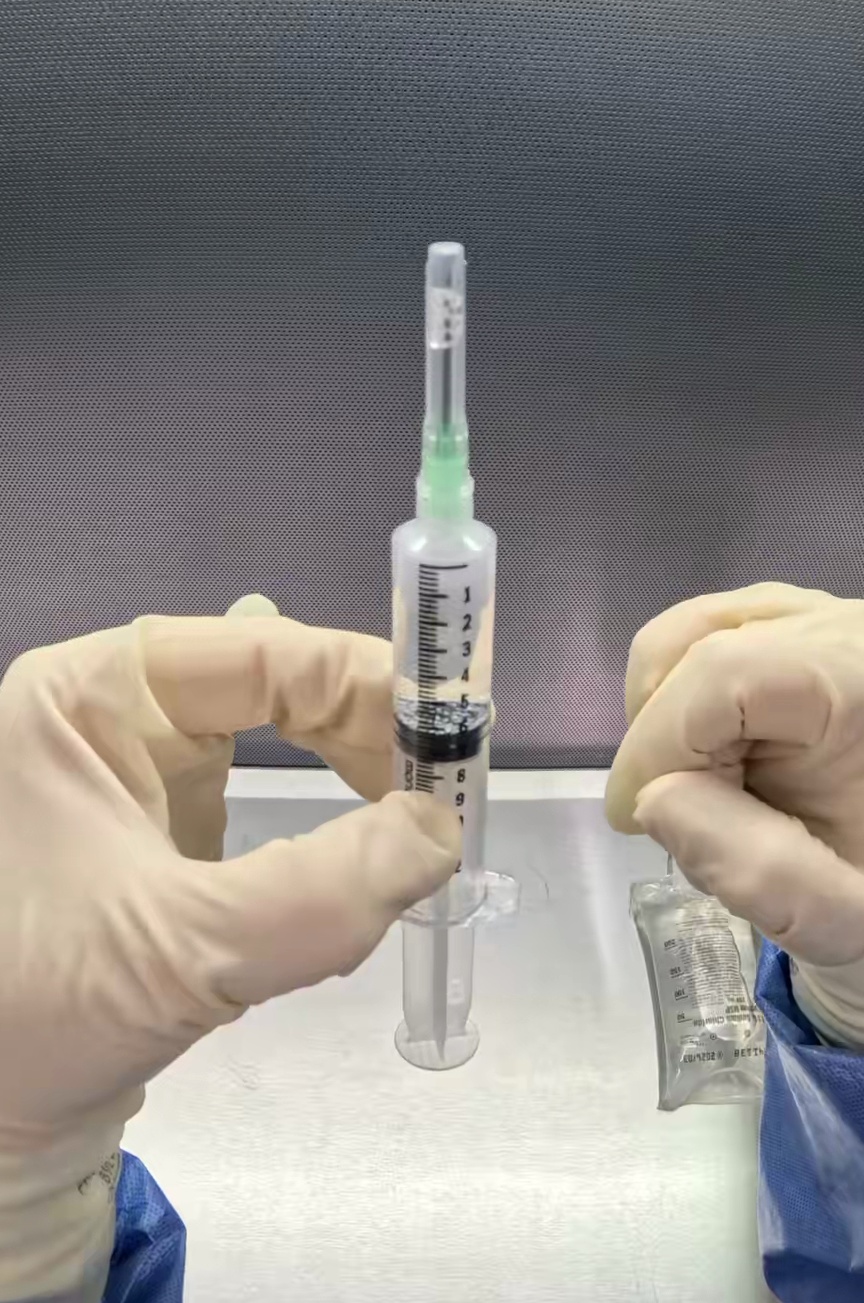

CENTER · t=425.0s

Drug-filled syringe

Pred: 5.00 mL | GT: 5.0 mL

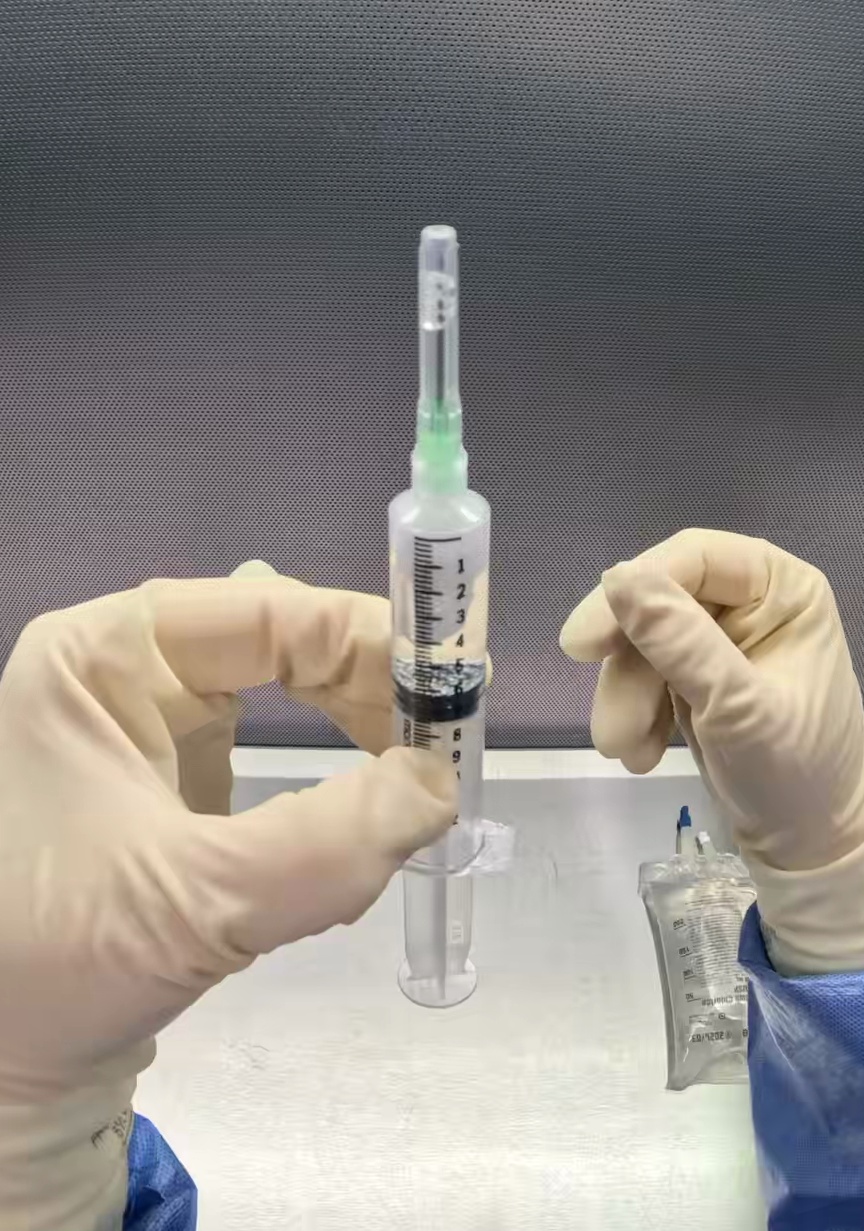

CENTER · t=426.5s

Drug-filled syringe

Pred: 2.00 mL | GT: 5.0 mL

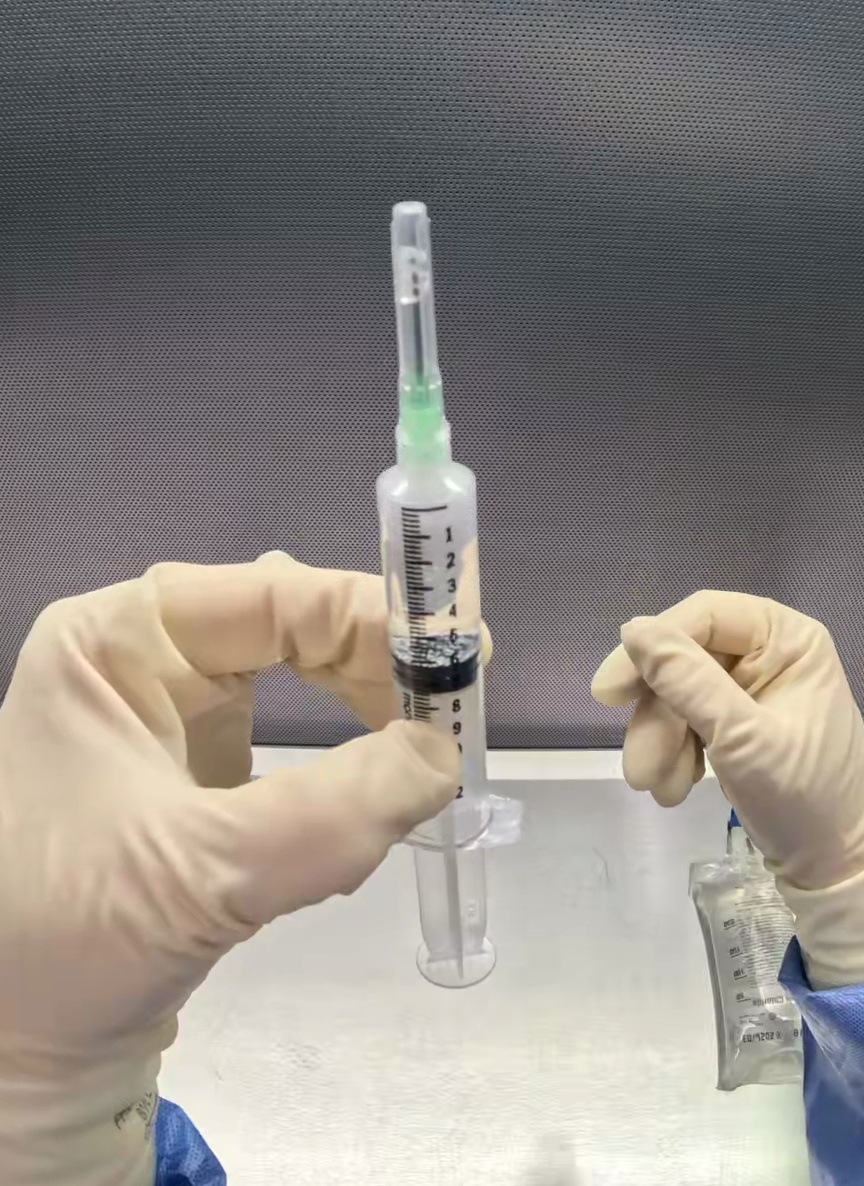

CENTER · t=428.0s

Drug-filled syringe

Pred: 1.00 mL | GT: 5.0 mL

CENTER · t=429.5s

Drug-filled syringe

Pred: 2.00 mL | GT: 5.0 mL

CENTER · t=431.0s

Drug-filled syringe

Pred: 5.00 mL | GT: 5.0 mL

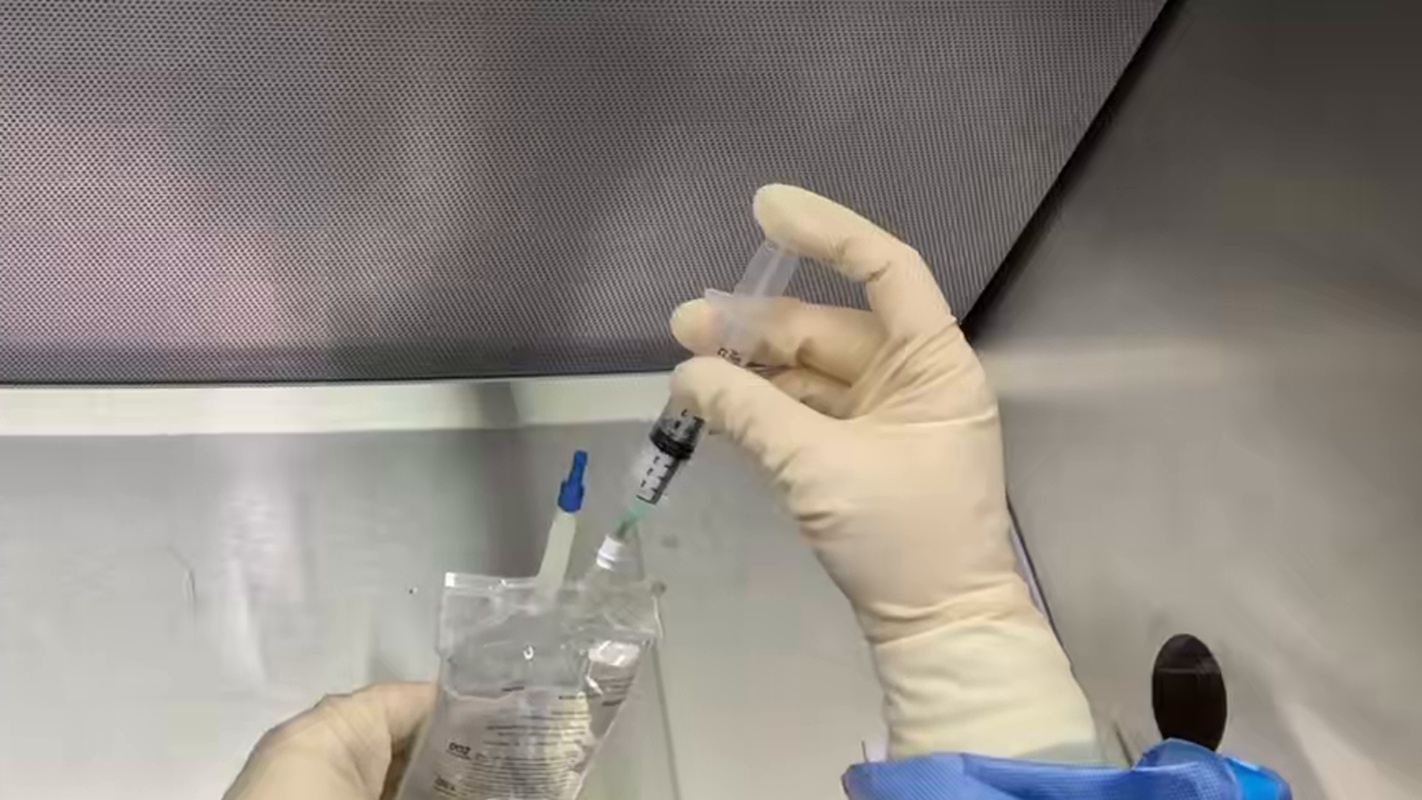

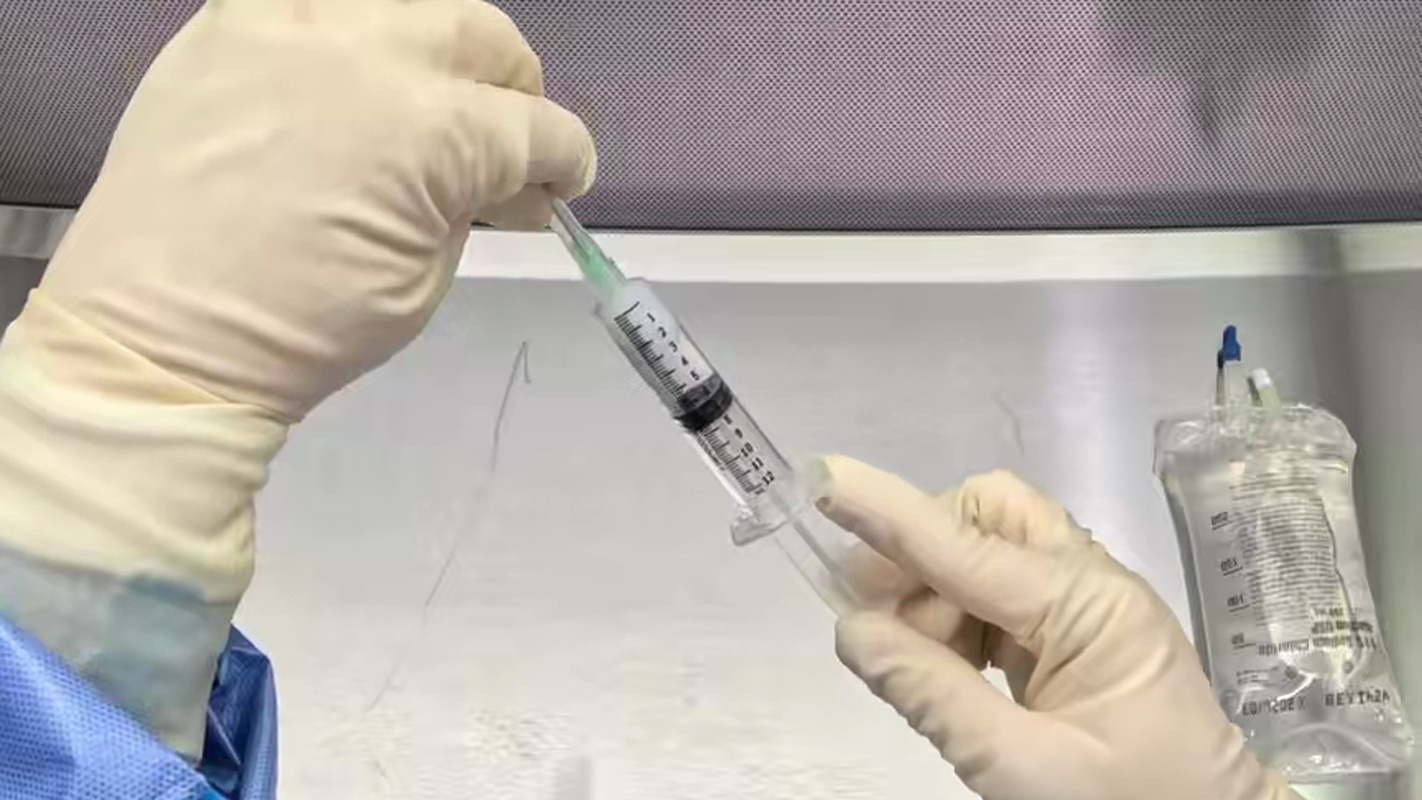

CENTER · t=434.25s

Drug-emptied syringe

Pred: 5.40 mL | GT: 0.0 mL

CENTER · t=441.0s

Drug-emptied syringe

Pred: 4.00 mL | GT: 0.0 mL

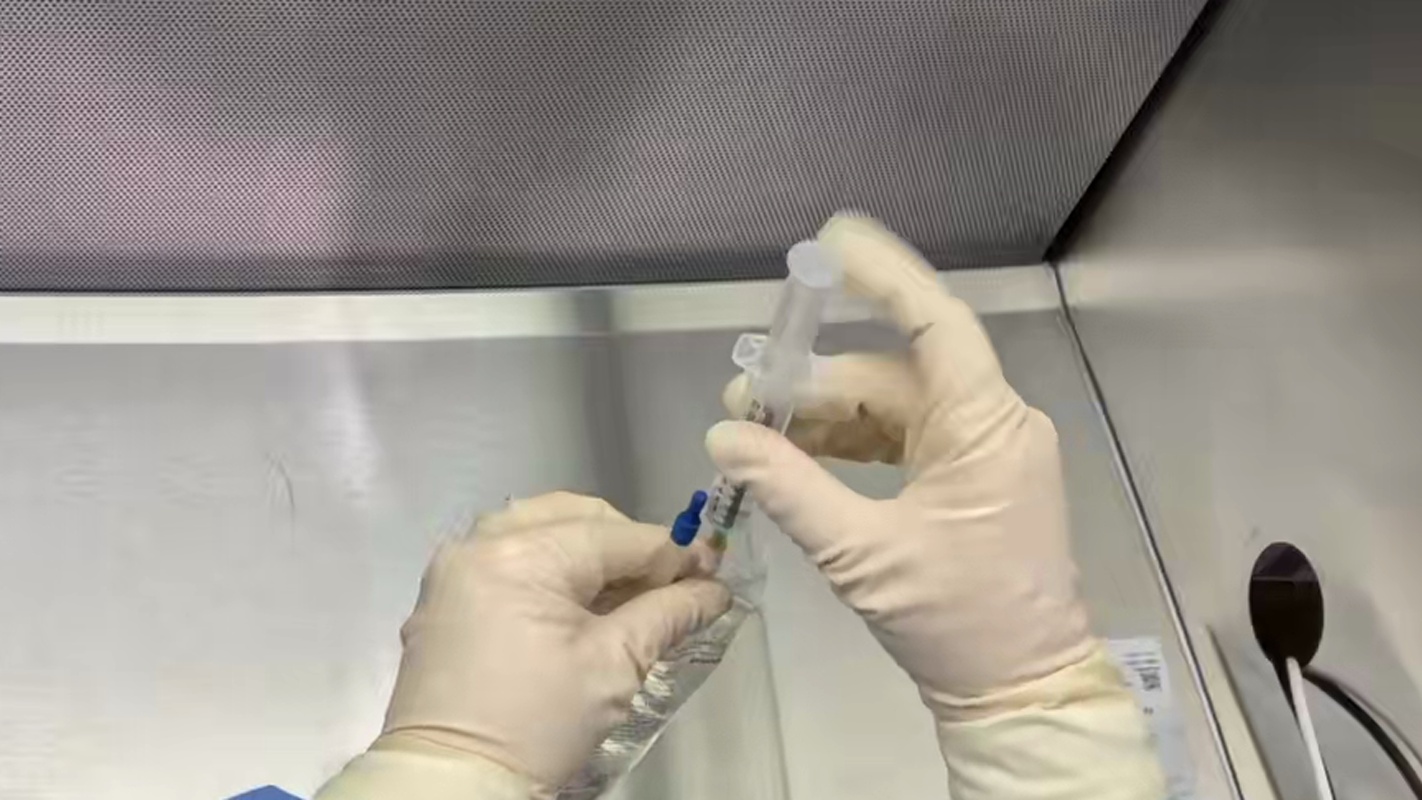

CENTER · t=445.5s

Drug-emptied syringe

Pred: 0.00 mL | GT: 0.0 mL

CENTER · t=450.0s

Drug-emptied syringe

Pred: 0.00 mL | GT: 0.0 mL

CENTER CAMERA: FULL SAMPLE LOG (36 FRAMES)

Checkpoint	Time	Ground Truth	Predicted	Abs. Error	Within ±1 mL	Confidence	Bbox Valid
Diluent-filled syringe	190.0s	5.0 mL	4.00 mL	1.00	Yes	high	Yes
Diluent-filled syringe	190.88s	5.0 mL	3.50 mL	1.50	No	high	Yes
Diluent-filled syringe	191.75s	5.0 mL	4.00 mL	1.00	Yes	high	Yes
Diluent-filled syringe	192.62s	5.0 mL	5.00 mL	0.00	Yes	high	Yes
Diluent-filled syringe	193.5s	5.0 mL	5.00 mL	0.00	Yes	high	Yes
Diluent-filled syringe	194.38s	5.0 mL	4.00 mL	1.00	Yes	high	Yes
Diluent-filled syringe	195.25s	5.0 mL	4.80 mL	0.20	Yes	high	Yes
Diluent-filled syringe	196.12s	5.0 mL	4.00 mL	1.00	Yes	high	Yes
Diluent-filled syringe	197.0s	5.0 mL	2.00 mL	3.00	No	low	Yes
Diluent-emptied syringe	203.0s	2.0 mL	2.00 mL	0.00	Yes	low	Yes
Diluent-emptied syringe	203.88s	2.0 mL	2.00 mL	0.00	Yes	medium	Yes
Diluent-emptied syringe	204.75s	2.0 mL	2.00 mL	0.00	Yes	medium	Yes
Diluent-emptied syringe	205.62s	2.0 mL	2.00 mL	0.00	Yes	medium	Yes
Diluent-emptied syringe	206.5s	2.0 mL	0.00 mL	2.00	No	high	Yes
Diluent-emptied syringe	207.38s	2.0 mL	0.00 mL	2.00	No	high	Yes
Diluent-emptied syringe	208.25s	2.0 mL	0.00 mL	2.00	No	high	Yes
Diluent-emptied syringe	209.12s	2.0 mL	0.00 mL	2.00	No	low	Yes
Diluent-emptied syringe	210.0s	2.0 mL	0.00 mL	2.00	No	low	Yes
Drug-filled syringe	419.0s	5.0 mL	1.50 mL	3.50	No	high	Yes
Drug-filled syringe	420.5s	5.0 mL	2.00 mL	3.00	No	high	Yes
Drug-filled syringe	422.0s	5.0 mL	5.00 mL	0.00	Yes	high	Yes
Drug-filled syringe	423.5s	5.0 mL	5.00 mL	0.00	Yes	high	Yes
Drug-filled syringe	425.0s	5.0 mL	5.00 mL	0.00	Yes	high	Yes
Drug-filled syringe	426.5s	5.0 mL	2.00 mL	3.00	No	high	Yes
Drug-filled syringe	428.0s	5.0 mL	1.00 mL	4.00	No	high	Yes
Drug-filled syringe	429.5s	5.0 mL	2.00 mL	3.00	No	high	Yes
Drug-filled syringe	431.0s	5.0 mL	5.00 mL	0.00	Yes	high	Yes
Drug-emptied syringe	432.0s	0.0 mL	2.00 mL	2.00	No	low	Yes
Drug-emptied syringe	434.25s	0.0 mL	5.40 mL	5.40	No	medium	Yes
Drug-emptied syringe	436.5s	0.0 mL	0.00 mL	0.00	Yes	low	Yes
Drug-emptied syringe	438.75s	0.0 mL	0.00 mL	0.00	Yes	low	Yes
Drug-emptied syringe	441.0s	0.0 mL	4.00 mL	4.00	No	medium	Yes
Drug-emptied syringe	443.25s	0.0 mL	2.00 mL	2.00	No	low	Yes
Drug-emptied syringe	445.5s	0.0 mL	0.00 mL	0.00	Yes	high	Yes
Drug-emptied syringe	447.75s	0.0 mL	2.00 mL	2.00	No	low	Yes
Drug-emptied syringe	450.0s	0.0 mL	0.00 mL	0.00	Yes	high	Yes
